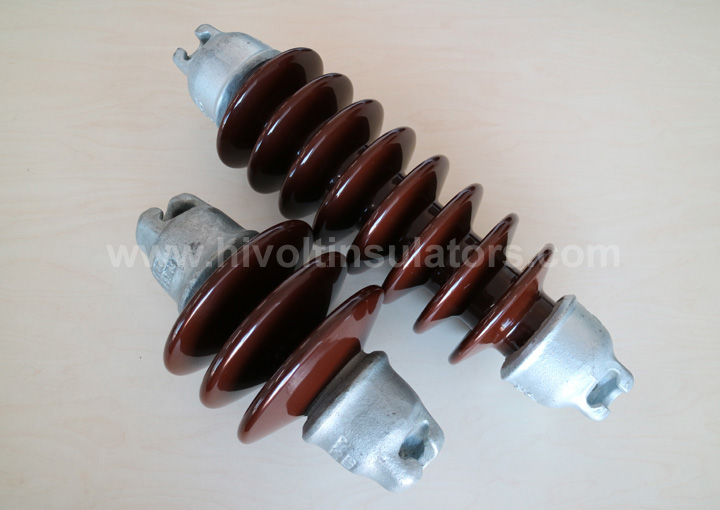

Technical Specifications for L40BE200 suspension long rod insulator in brown for EU market

L40BE200 suspension long rod insulator mainly used in the market of EU countries . HIVOLT products export to many of those countries , and have very good reputation just because of high quality and competitive price .

1  the insulator cap use high density ductile iron ,we test each piece of caps with magnetic powder testing method .

The insulator cap surface are hot galvanized , zinc thickness meet related IEC standard .

The Min. zinc thickness are more than 85μm . The galvanization surface are smooth and shinning , and free of defect.

2  The insulation parts are made of high aluminum porcelain C130 . The porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.

3  the material of  R -clip  is stainless steel which guarantee insulator string connection very safety .

4  We use excellent Portland cement to assemble porcelain body and related cap .   Even after years of service , the cement still keep good performance.

Applications:

L40BE200 suspension long rod insulator are suitable for tension string or suspension string in transmission or distribution lines from 11kV , 25kV or 33kV .

Competitive Advantage:

L40BE200 suspension long rod insulator have a very reliable electrical & mechanical character .

The failure rate is lower than 1 per 100000 .

We offer 3 years quality guarantee period , if the product has inside defect , we will replace it free of charge .

The porcelain glaze are hard and shinning , it has very good self-cleaning advantage . It is easy for maintenance .

The insulator are non-punctured product ,  so the transmission line maintenance will be much more easier
