We supply high quality silicone rubber fuse cutout for distribution lines , the product level are from 11 kV up to 36kV with current level 100A ,200A and 300A .

 The very high mechanical performance and excellent electrical character will build more reliable power lines.

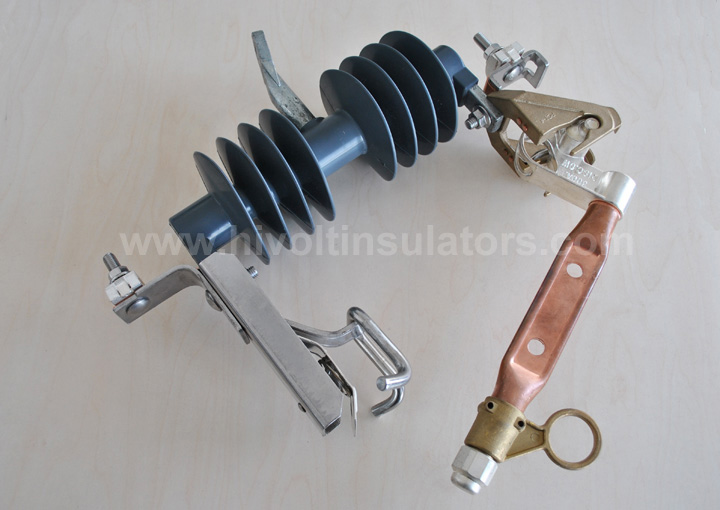

below is the information of above photo:

Description:

product name :15KV silicone rubber dropout fuse cutout grey with solid copper fuse tube 300A

Rated Voltage: 15 kV

Rated Current : 300A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 45kV

Impulse Voltage : 110 kV

Leakage distance : 240mm

Connector type : paralell groove connector silver coated

More detailed information shown below:

Description:

product name :15KV silicone rubber dropout fuse cutout grey with solid copper fuse tube 300A

To be sure all batches of 15kV dropout fuse cutout are qualified , we conduct below performance tests :

1) Power frequency dry withstand voltage test

2) Lightning impulse withtand voltage test

3) Power frequency wet withstand voltage test

4) Temperature rise limitations test

5) Radio influence levels test

Applications:

Used for distribution lines or substations up to 15kV , suitable for wooden or steel cross arm

Competitive Advantage:

We guarantee that all fuse cutout units are routine tested one by one according to IEEE C37.41 , IEEE37.42 before shipment . In this way , we can guarantee all product are qualified .

All related metal parts or insulation body are selected .

To offer high quality product is our goal .

We also advanced our design to save cost , that we can offer better price for end users.
