HDPE Insulators
2017-09-09 20:17:00

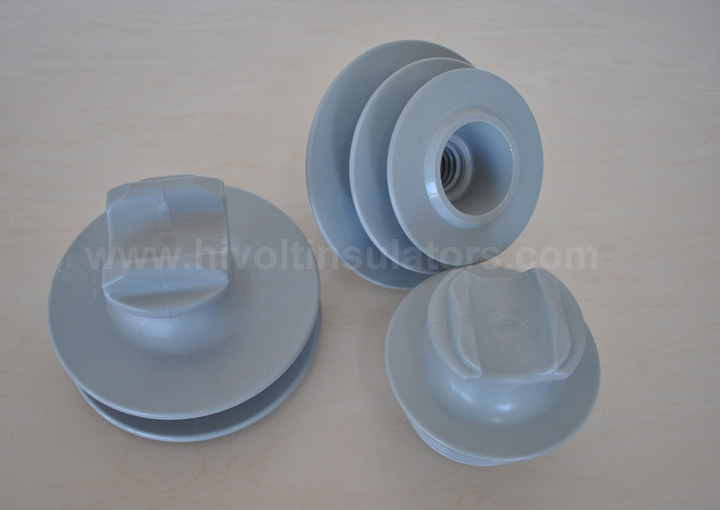

We offer high quality Polyethylene Pin type insulators .
Comparing with traditional material insulators , HDPE insulators have good advantages :
1 Very light unit weight , it is easy for transportation , line assembly operations , it can low down much labors during distribution lines construction .
2 Excellent aging -proof performance ,
3 The material is easy for maintenance , the material is not broken when attacked by bullet , birds , or other violence .
4 Excellent self-cleaning character .
5 The HDPE insulators can be auto-production from production lines , so production period will be very short , that means we can make very fast delivery after PO .
The insulator technical data sheet shown below :
DATA | HIP-15F | HIP-25F1 | HIP-25F2 | HIP-35F | |
Fig No. | 1 | 2 | 3 | 4 | |
Height (A) | mm | 130 | 150 | 140 | 180 |
Big Shed Diameter (B) | mm | 140 | 190 | 190 | 190 |
Dry Arcing Distance | mm | 160 | 183 | 201 | 254 |
creepage distance | mm | 368 | 389 | 371 | 533 |
Dry Power Flashover Voltage | KV | 75 | 89 | 89 | 110 |
Critical Impulse Flashover Voltage + | KV | 110 | 145 | 145 | 167 |
Low Power Freq. Puncture Voltage | KV | 162 | 185 | 185 | 200 |
Cantilever Strength | KN | 13 | 13 | 13 | 13 |
Other dimensions | |||||
C | mm | 82 | 100 | 103 | 140 |
D | mm | 73 | 73 | 73 | 73 |
E | mm | 25 | 25 | 25 | 25 |
F | mm | 16 | 20 | 20 | 20 |
