The dead end insulators voltage class can be 15kV ,28kV,35kV,46kV .specified mechanical load from 60 kN up to 90kN. for example : types DS-15,DS-25, DS-35,DS-56 etc.
Model | Rated Voltage | Specified Mechanical Load | Section Length | Shed Diameter | Creepage Distance | Full-Wave Impulse Flashover Voltage | 1 Min Wet Power Frequency Flashover Voltage | Radio interference voltage | ||
kV | kN | H(mm) | d1(mm) | L(mm) | kV | kV | Test kV | Max. | ||
DS-15 | 15 | 70 | 330±5 | 100 | 400 | 140 | 65 | 15 | 10 | |
DS-25 | 33 | 70 | 500±5 | 80 | 660 | 235 | 120 | 20 | 10 | |
DS-35 | 35 | 70 | 520±5 | 98 | 905 | 250 | 130 | 30 | 10 | |
DS-35S | 35 | 70 | 470±5 | 98 | 855 | 290 | 140 | 30 | 10 | |
DS-45 | 45 | 70 | 579±6 | 120 | 1125 | 330 | 157 | 30 | 365 |

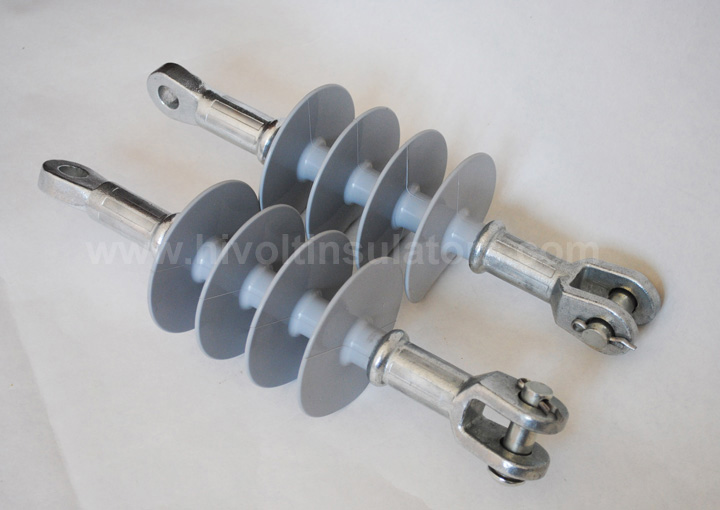

ANSI standard dead end composite insulators , the housing and sheds material are silicone rubber , this polymer has inherent resistance to UV and corona .It also provides a water repellent surface to decrease flashover.
The insulator production procedure is moulded silicone on fiber glass core, this allows variable leakage distances for a fixed insulator length.
The metal fittings must be cramped to the fiberglass core .
The insulator rubber material is HTV type .
When we make design on deadend insulators , the insulator sheath thickness is Min. 3mm ,which can reduce the electric field strength within the FRP rod .
All the deadend insulator comply with ANSI Standard . that means those insulators are commonly used in American Markets , USA, South American countries etc.
Good Advantages:
HIVOLT deadend insulators are in high quality both mechanical and electrical performance, we guarantee you every pieces of insulator are well tested before transported out of factory .
The insulator can only be sent out after passing related test items.
The HIVOLT deadend insulator has good experience to work more than 20 years.
