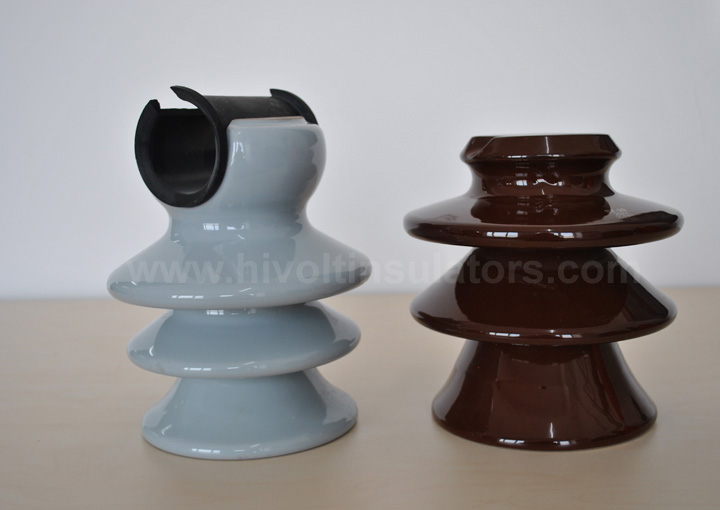

We offer high quality pin type insulators according to IEC , ANSI, BS standards and customers' specifications .

Voltage class of pin type insulator can be made up to 36 KV ,10 KN.

Especially ANSI Standard pin insulator are in very good finish and high cantilever strength .

for example : 55-2,55-3,55-4,55-5 , 56-1,56-2,56-3,56-4,56-5 etc.

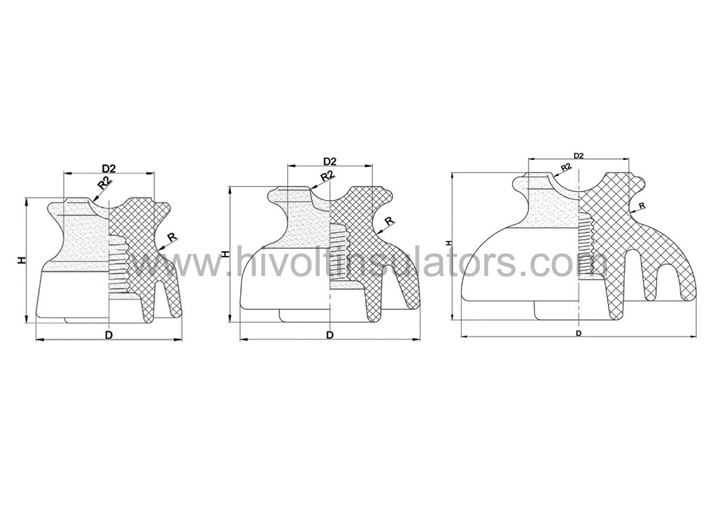

ANSI class		55-1		55-2		55-3		55-4		55-5
Insulator type		Plain	Radio Freed	Plain	Radio Freed	Plain	Radio Freed	Plain	Radio Freed	Plain	Radio Freed
Neck Designation		C		C		C		F		F
Rating Voltage (U.S.Practice) /(kV)		7.2		7.2		/		/		/
Creepage   distance(in)		4		5		7		9		12
Dry-arcing   distance(in)		2-1/4		3-3/8		4-1/2		5		6-1/4
Minimum pin   height(in)		4		4		5		5		6
Dimensions	D(in)	3-1/4		3-3/4		4-3/4		5-1/2		7
	D2(in)	2-1/4±1/8		2-1/4±1/8		2-1/4±1/8		2-7/8±1/8		2-7/8±1/8
	R(in)	1/2		5/8		9/16		9/16		9/16
	R2(in)	/		5/8		9/16		1		1
Cantilever   strength(lb)		3000		2500		2500		3000		3000
Low-frequency flashover voltage	dry(kV)	35	35	50	45	65	55	70	65	85	80
	wet(kV)	20	20	25	25	35	30	40	35	45	45
Critical impulse flashover voltage	positive(kV)	50	50	75	70	100	90	110	105	140	130
	negative(kV)	70	70	95	85	130	110	140	130	170	150
Low-frequency   puncture voltage(kV)		50		70		90		95		115
Radio-Influence Voltage Data	test voltage,rms   to ground(kV)	5	5	5	5	10	10	10	10	15	15
	maximum RIV at 1000kHz(μV)	2500	50	2500	50	5500	50	5500	50	8000	100

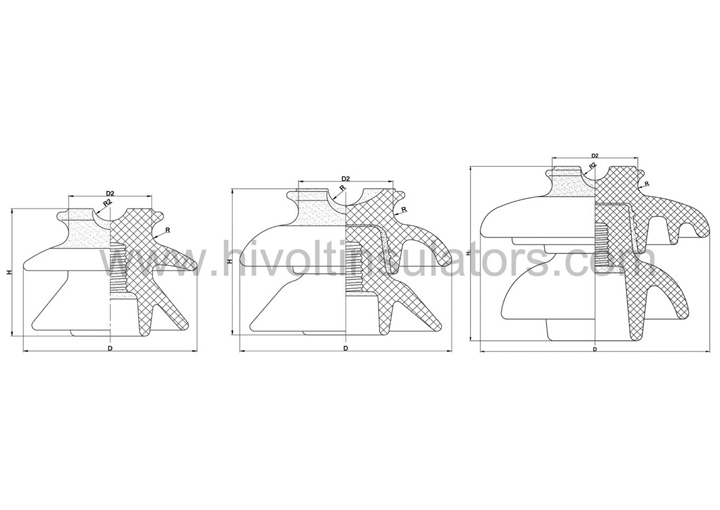

ANSI class		56-1		56-2		56-3		56-4		56-5
Neck Designation		J		K		K		/		/
Voltage Rating (U.S.Practice) /(kV)		23		23		34.5		46		69
Creepage   distance(in)		13		17		21		27		864
Dry-arcing   distance(in)		6		8-1/4		9-1/2		11-1/4		356
Minimum pin   height(in)		5		7		8		10		318
D(in)		7-1/2		9		10-1/2		12		13-1/2
R(in)		9/16		9/16		9/16		9/16		9/16
R2(in)		3/4		3/4		3/4		3/4		3/4
Cantilever   strength(lb)		2500		3000		3000		3000		3000
Low-frequency flashover voltage	dry(kV)	95		110		125		140		175
	wet(kV)	60		70		80		95		125
Critical impulse flashover voltage	positive(kV)	150		175		200		225		270
	negative(kV)	190		255		265		310		340
Low-frequency   puncture voltage(kV)		130		145		165		185		225
Radio-Influence Voltage Data	test voltage,rms   to ground(kV)	15		22		30		30		44
	maximum RIV at 1000kHz(μV)	100		100		200		200		200
