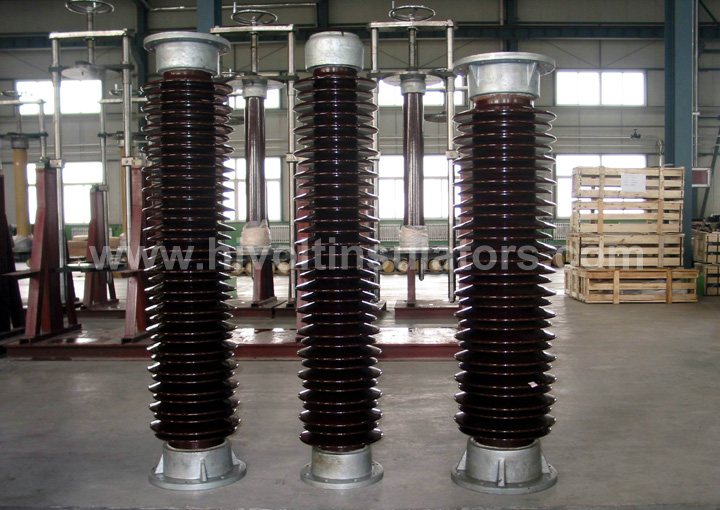

We supply high quality station post insulators according to IEC ,ANSI standards or customers' specifications .

 IEC standard products including :   C8-550 , C8-1050 , C10-1175, C12.5-1800 etc.

ANSI standard  post insulators including: TR202, TR205, TR208,TR216, TR286, TR304 ,TR295 etc.

The station post insulator can be made up to 1000KV , 30KN .

The shapping method in both Isostatic pressing and wet process are all available .

IEC   Designation		C12.5-150	C4-170	C4-200	C6-200	C4-250	C6-325

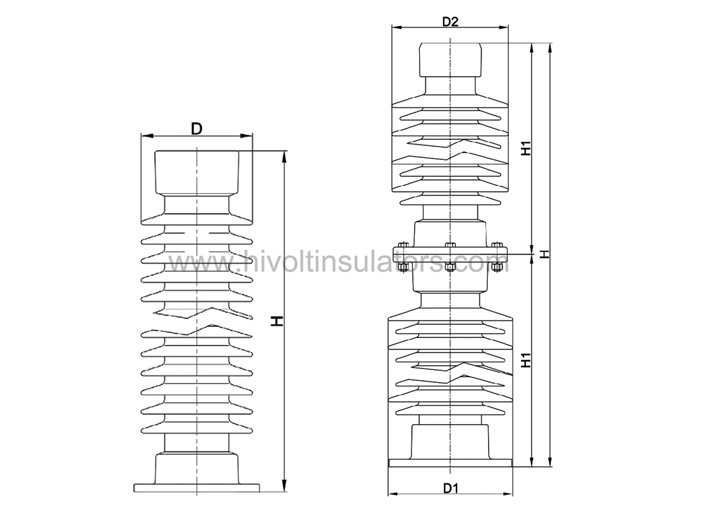

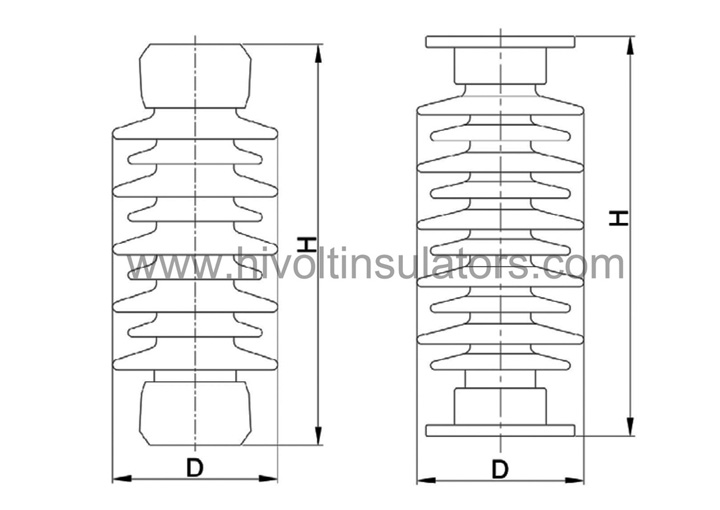

Figure		1	1	1	1	1	1
Overal   Height(H),	mm	355	445	475	475	560	770
Max. Shed   Diameter(D)	mm	205	180	180	190	175	195
Creepage   Distance	mm	660	850	950	950	1200	1600
Top Fitting   P.C.D.(d1)/Hole pattern	mm	Φ76/M12(4x)	Φ76/M12(4x)	Φ76/M12(4x)	Φ76/M12(4x)	Φ76/M12(4x)	Φ127/M16(4x)
Bottom Fitting   P.C.D.(d2)/Hole pattern	mm	Φ76/M12(4x)	Φ76/M12(4x)	Φ76/M12(4x)	Φ76/M12(4x)	Φ127/M16(4x)	Φ127/M16(4x)
Min.   Cantilever Strength	kN	12.5	4	4	6	4	6
Min. Torsion   Strength	N-m	2.5	1.2	1.2	1.8	1.8	2.5
Power   Frequency Withstand  Wet	kV	50	70	70	70	95	140
Lightning   Impulse Withstand  Dry	kV	150	170	200	200	250	325

IEC   Designation		C16-1050-Ⅲ	C10-1050-Ⅱ	C8-1050-Ⅲ	C12.5-1050-Ⅲ	C10-1425-Ⅱ
Figure		1	1	1	1	1
Overal   Height(H),	mm	2300	2300	2400	2300	3150
Max. Shed   Diameter(D)	mm	330	275	285	315	290
Creepage   Distance	mm	6300	6000	6300	6300	8400
Top Fitting   P.C.D.(d1)/Hole pattern	mm	Φ127/M16(4x)	Φ127/M16(4x)	Φ127/M16(4x)	Φ254/Φ8(8x)	Φ127/M16(4x)
Bottom Fitting   P.C.D.(d2)/Hole pattern	mm	Φ300/Φ18(8x)	Φ275/Φ18(8x)	Φ254/Φ18(8x)	Φ225/Φ8(8x)	Φ300/Φ18(8x)
Min.   Cantilever Strength	kN	16	10	8	12.5	10
Min. Torsion   Strength	N-m	10	4	6	10	6
Power   Frequency Withstand  Wet	kV	460	460	460	460	950
Lightning   Impulse Withstand  Dry	kV	1050	1050	1050	1050	1425
Net Weight	kgs	269	207	210	25	300

HIVOLT station post insulators choose high quality materials :

1, Metal flange :  We use high density ductile iron or malleable iron ,every piece are tested qualified with magnetic powder inspection .

Flange surface are hot dip galvanized ,  zinc thickness meet related IEC and ASTM standard requirement .

2 Porcelain : the insulation part use high aluminum porcelain C130 , the porcelain surface covered a layer of hard and shinning glaze , color can be grey , brown or white .

3 Cement  : excellent Portland cement make the assembled insulator have very good mechanical performance and the quality are more reliable .

4 silicone sealant :  we sue a layer of silicone sealant cover the cement ring surface , just to protect cement have a stable performance for longer life ,

In the meantime , it can prevent cement dust fall down to pollute the electrical instrument .

One more thing , we can also paint HRTV on the insulator body surface , if customer has such requirement .

The HRTV coating has excellent insulation performance ,  after the treatment , the insulators can be used in extra heavy pollution area.
